M.O.P.A Amplifier
The new M.O.P.A Amplifier Plasma Tube Frequency Machine

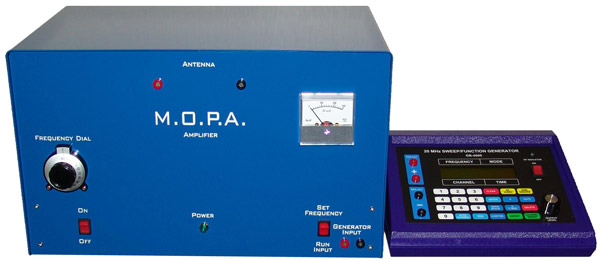

M.O.P.A. Amplifier

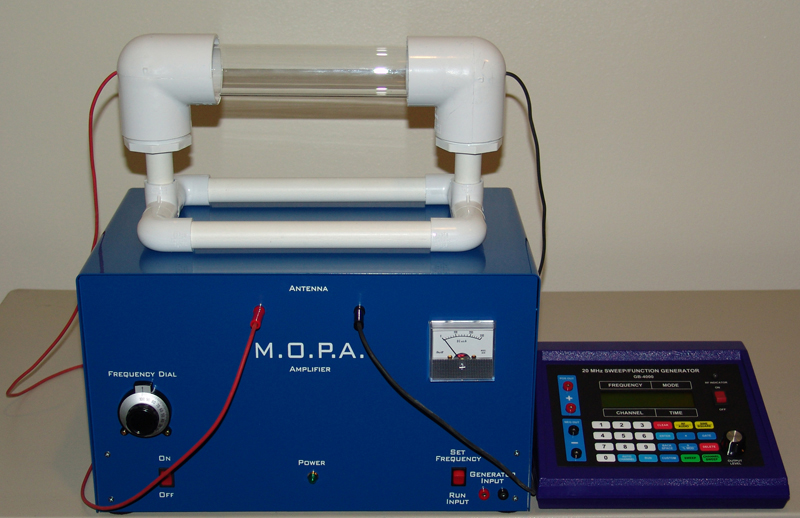

The MOPA Combo Package includes:

• The GB4000 Frequency Generator. The most powerful, most capable frequency machine on the market.
• The MOPA Amplifier/Oscillator
• Connecting cables to connect your GB4000 to your MOPA Amplifier
• Operating Instructions Manual

Modern solid state circuitry uses low voltage, high current designs, to avoid the additional engineering and component costs involved in building the types of machines used in the 1930's and 1940's. The M.O.P.A amplifier/oscillator combines solid state design with analog vacuum tube technology to generate a high voltage, low current output. The ability to produce a high voltage, low currnet output to drive the plasma tube makes the MOPA, coupled with the GB4000 frequency generator unique in the market. And even with the advantages of vacuume tube design, it is still almost $1500.00 less than other comparable plasma tube machines.

• 60 watts Maximum power output at 140 milliamps.
• Broadcast range: 1700 feet with useful range of about 30 feet when using plasma tube.
  Suggested range: 1 to 5 feet when using plasma tube
• Designed to drive a Plasma Tube or Ray Tube
• Made by hand in the USA and tested for quality and durability
• One Year Warranty
• Proven Design = Modern Solid State circuitry combined with time tested vacuum tube technology
• Uses original Vacuum Tube amplification
• Amplification Voltage: High Voltage (1160 volts)
• Amplification Current: Low Current (30 to 140 milliamps)
• Build in milliamp meter
• Output waveform: Sine Wave
• Carrier Frequency: Variable.
• Approximately 1.1 Mhz to 1.9 Mhz adjustable carrier frequency range
• Carrier Frequency tuning: Variable Tuning Capacitor.
• Designed to work with the GB4000 frequency generator through bananna jacks or a BNC connection
• Uses input from the GB4000 to generate frequency modulation up to 40,000 hertz square wave @ 100% AM modulation
• When connected to the GB4000, it can transmit up to 8 frequencies simultaneously.
• Gating or pulsing: 1 to 40,000 hertz, variable using the G4000.
• Frequency Delivery: Metal or plasma tube antenna.
• Instantaneous tube ignition with no SWR meter needed.
• Compact Size - 10.5" Wide X 17" Long X 10" High.
• Input power: 110/120 Volts AC
• Power usage: 150 watts.
• Weight: about 19 pounds.

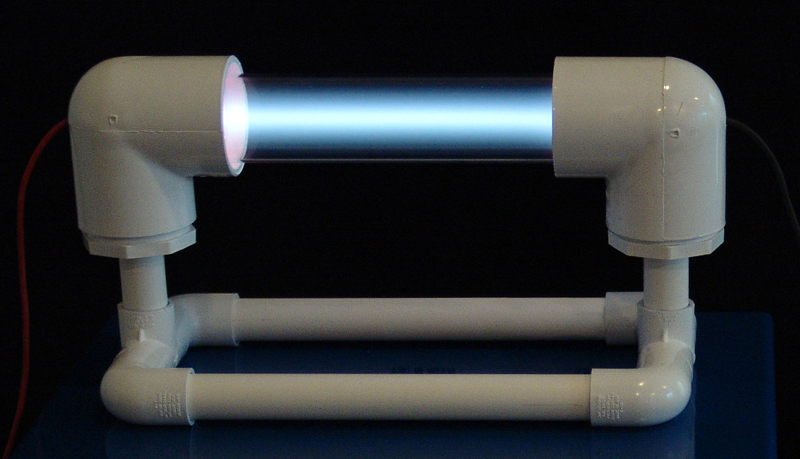

Please note: the plasma tube including copper collars with plasma tube holder and connecting wires is sold separately from another company. The cost for the plasma tube is $260.00 plus shipping. The plasma tube is made of Pyrex and is a 2" round by 14" long helium filled tube. It is guaranteed to handle the power output of the MOPA Amplifier.
